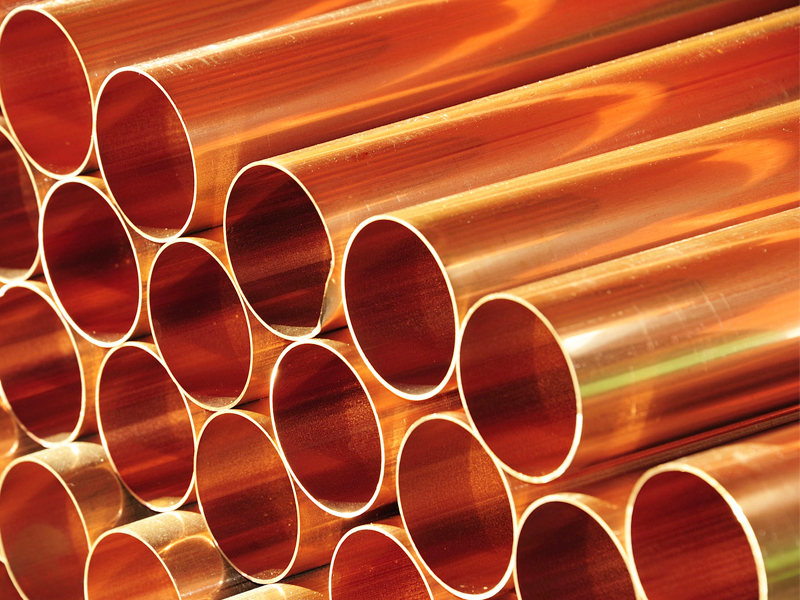

C10100 Copper tubes

‹

›

‹

  • C10100 Copper tubes
  • C10100 Copper tubes
  • C10100 Copper tubes

›

Type:Straight Copper Pipe
Application:bending manufacturing the stress of the parts
Specification:WT:0.5mm~80mm
Alloy Or Not:Is Alloy
Outside Diameter:as customer require

The company has sufficient inventory and can be picked up at any time.

Share to:

Product Description
Parameters
Company Profile
FAQ

Overview


ItemCopper tube / pipe
TypeStraight copper pipe,Capillary copper pipe
 StandardGB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
ShapeRound,Square,Rectangular,Oval,half-round
RoundOD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
SquareSize:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm
RectangularSize:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm
Length1m,2m,3m,6m,or as required
Hardness1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surfacemill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
   Application

1. Pancake Coil for ACR, General Engineering Applications

 2. LWC Coil for ACR, General Engineering Applications

3. Straight Copper Tubes for ACR and Refrigeration

4. Inner-grooved copper tube for ACR and Refrigeration

5. Copper Pipe for Transportation System of water, gas and oil

6. PE-coated copper tube for water/gas/oil transportation system

7.Semi-finished Copper tube for industrial applications




Work Shop & Production Flow

Process flow diagram

Product flow

Chemical Composition Of Copper:

Grade Chemical Composition(%)
  GB JIS Cu+Ag P Bi Sb As Fe Ni Pb Sn S Zn O
Refined Copper T1 C1020 99.95 0.001 0.001 0.002 0.002 0.005 0.002 0.003 0.002 0.005 0.005 0.02
T2 C1100 99.9 - 0.001 0.002 0.002 0.005 - 0.005 - 0.005 - -
T3 C1221 99.7 - 0.002 - - - - 0.01 - — - -
Oxygen Free Copper  TU0 C1011 99.99 0.0003 0.0001 0.0004 0.0005 0.001 0.001 0.0005 0.0002 0.0015 0.0001 0.0005
 TU1 C1020 99.97 0.002 0.001 0.002 0.002 0.004 0.002 0.003 0.002 0.004 0.003 0.002
TU2 99.95 0.002 0.001 0.002 0.002 0.004 0.002 0.004 0.002 0.004 0.003 0.003

Physical Properties Of Copper Factory:

Grade (JIS) Temper Vickers Hardness (HV) Tensile Strength (Mpa) Elongation (%)
C1100C1201C1220etc. M (Soft) ≤70 ≥195 ≥30
Y4 (1/4H) 60-95 215-295 ≥25
Y2 (1/2H) 80-110 245-345 ≥8
Y (Full Hard) 90-120 295-395 ≥3
T (Extra Hard) ≥110 ≥350 -

About Us

Huyi Metal established in 2018, is a professional metal fabricator and metal service supplies of aluminium products ranging from aluminium plates, aluminium coils,aluminium pipes,aluminium bars, aluminium sheets,aluminium chequer plates,color-coated aluminium etc. Our products have been widely used in the construction, decoration,household goods,machinery parts and automotive industry.



Introduced the domestic advanced level of forging equipment shearing machine, imported turret CNC machine tool, fully automatic CNC bending machine, blue electrostatic spray gun and Swiss Golden Horse electrostatic spray gun and other aluminum veneer production equipment to maximize the guarantee of products from the aspect of infrastructure quality.



We will always endeavor to be a more competitive and dynamic company in order to respond appropriately to increasingly sophisticated and diverse customer requirements, and to provide superior value-added products through our innovation.



We will proactively engage in R& D activities to further improve of our product reliability and performance.



Huyi Metal has secured a competitive edge in the development of non-ferrous metal production and processing technology based on high-capacity demand in the machinery and electricity industries and has grown continuously by producing multi-roval drawing products copper bus bars for ultra-high-pressure circuit breakers and aluminum sleeve products.

Continue design, understanding, technology and research and development of accurate specifications and reliability of parts.


Packaging & Shipping

If products is stock , about 7-10days can delivery after received deposit.

If custom products ,  100tons about 20-25days , exceed 100tons within 300tons about 40-50days , exceed 300tons, within 60days .

Product packaging material selection, good protection products

The uncoated aluminum plates are separated by paper to prevent static electricity from damaging the surface.

The innermost is wrapped in kraft paper, waterproof plastic paper is added on the outer, and the edge is protected by a carton corner.

The trays are fumigation trays or non-fumigation trays, one trays weight about 3-4 tons.




Frequently Asked questions

Q1 . Can I have a sample order for products ?
A : Yes , we welcome sample order to test and check quality . Mixed samples are acceptable .


Q2 . What about the lead time ?
A : Sample needs 3-5 days


Q3 . Do you have any MOQ limit for products order ?
A : Low MOQ , 1pcs for sample checking is available


Q4 . How do you ship the goods and how long does it take to arrive ?
A : We usually ship by DHL , UPS , Fedex or TNT . It usually takes 3-5 days to arrive . Airline and seashipping also optional For mass products , ship freight is prefered


Q5 . Is it OK to print my logo on products ?
A : Yes , OEM and ODM are available for us


Q6 : How to ensure the quality ?
A Mill Test Certificate is supplied with shipment . If needed , a Third Party Inspection is acceptable
