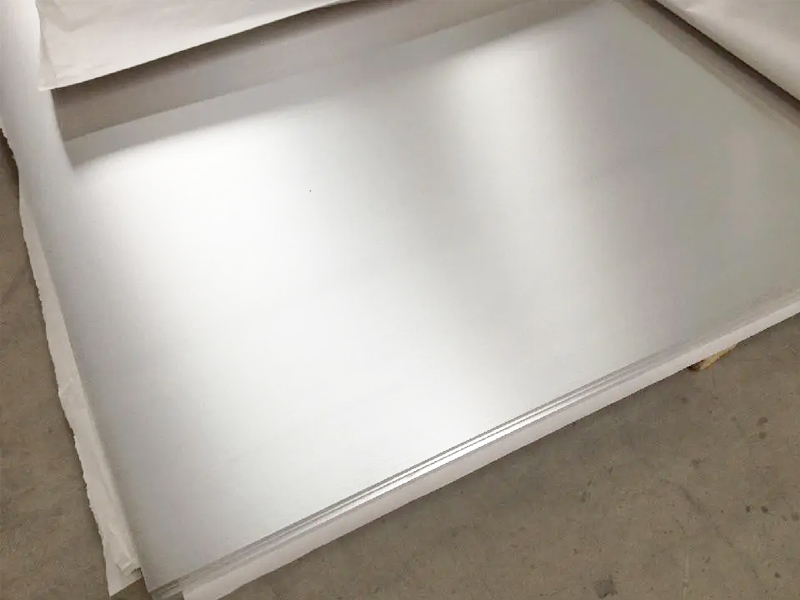

6061 Aluminum sheet

Grade:6000 Series
Temper:O-H112
Type:Aluminum plate
Application:General domain
Width:Customer Requirement
Surface Treatment:Customer Requirement
Alloy Or Not:Is Alloy
Brand Name:SH
Model Number:6000 series
Tolerance:±1%

The company has sufficient inventory and can be picked up at any time.

Share to:

Product Description
Parameters
Company Profile
FAQ

Overview

Product NameAluminum Plate
TemperO, H12, H14, H16, H18, H22, H24, H26, H32, H112
Thickness0.1mm - 260mm
Width500-2000mm
Lengthto clients’ requirement
CoatingPolyester, Fluorocarbon, polyurethane and epoxy coating
SurfaceMill finished, Coated, Embossed,Brushed, Polished, Mirror, Anodized,etc
GlossMeet the customer requirement
MaterialAluminum Alloy Metal
StandardGB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
OEM servicePerforated, Cutting special size, Doing flatness, Surface treatment,etc
UsageConstruction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc
DeliveryIn general, within 7-15 working days after receiving deposit or According to Final order quantity
Packaging Details

Standard export package.One pallet is about 2-3 ton.Two steel belts in width and three in width

.One 20GP container can load about 18-20 tons Aluminium 6061 Sheet.One 40GP container can load about 24 tons Aluminium 6061 Sheet



Work Shop & Production Flow

Process flow diagram

Product flow

Chemical Composition Of Aluminum Alloy:

Garde Si Fe Cu Mn Mg Cr Zn Ti OTHERS1 OTHERS2 Al
1050 0.25 0.4 0.05 0.05 0.05 0.05 0.03 0.03 99.5
1060 0.25 0.35 0.04 0.05 0.03 0.04 0.03 0.03 99.7
1100 Si + Fe ≤ 1.0 0.05-0.20 0.05 0.1 0.05 0.15 99
2024 0.5 0.5 3.8-4.9 0.30-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 Rem.
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.15 Rem.
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 0.25 0.05 0.15 Rem.
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 0.05 0.15 Rem.
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 0.25 0.15 0.03 0.1 Rem.
6061 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.05 0.15 Rem.
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 0.05 0.15 Rem

Physical Properties Of Aluminum Alloy Factory:

Grade Hardness Tensile Strength Yield Strength Elongation(%)
(MPa) (MPa) 0.25-1.25mm 1.26-3.0mm
1100 O 89.6 34.5 30 6
H12 110.3 103.4 4 12
H14 124.1 117.2 3 10
2024 O 186.2 75.8 18 20
T3 482.6 344.7 16 18
T4 468.8 324.1 20 19
3003 O 110.3 41.4 30 33
H12 131 124.1 9 11
H14 151.7 144.8 3 7
5052 O 193.1 89.6 20 21
H32 227.5 193.1 7 10
H34 262 213.7 6 8
5083 O 275.8 144.8 21 25
H32 282.7 151.7 20 21
H34 330.9 255.1 11 14
6061 O 124.1 55.2 25 26
T4 241.3 144.8 22 24
T6 310.3 275.8 12 17
7075 O 227.5 103.4 16 18
T6 572.3 503.3 11 12

About Us

Huyi Metal established in 2018, is a professional metal fabricator and metal service supplies of aluminium products ranging from aluminium plates, aluminium coils,aluminium pipes,aluminium bars, aluminium sheets,aluminium chequer plates,color-coated aluminium etc. Our products have been widely used in the construction, decoration,household goods,machinery parts and automotive industry.



Introduced the domestic advanced level of forging equipment shearing machine, imported turret CNC machine tool, fully automatic CNC bending machine, blue electrostatic spray gun and Swiss Golden Horse electrostatic spray gun and other aluminum veneer production equipment to maximize the guarantee of products from the aspect of infrastructure quality.



We will always endeavor to be a more competitive and dynamic company in order to respond appropriately to increasingly sophisticated and diverse customer requirements, and to provide superior value-added products through our innovation.



We will proactively engage in R& D activities to further improve of our product reliability and performance.



Huyi Metal has secured a competitive edge in the development of non-ferrous metal production and processing technology based on high-capacity demand in the machinery and electricity industries and has grown continuously by producing multi-roval drawing products copper bus bars for ultra-high-pressure circuit breakers and aluminum sleeve products.

Continue design, understanding, technology and research and development of accurate specifications and reliability of parts.


Packaging & Shipping

If products is stock , about 7-10days can delivery after received deposit.

If custom products ,  100tons about 20-25days , exceed 100tons within 300tons about 40-50days , exceed 300tons, within 60days .

Product packaging material selection, good protection products

The uncoated aluminum plates are separated by paper to prevent static electricity from damaging the surface.

The innermost is wrapped in kraft paper, waterproof plastic paper is added on the outer, and the edge is protected by a carton corner.

The trays are fumigation trays or non-fumigation trays, one trays weight about 3-4 tons.


Frequently Asked questions

Q1 . Can I have a sample order for products ?
A : Yes , we welcome sample order to test and check quality . Mixed samples are acceptable .


Q2 . What about the lead time ?
A : Sample needs 3-5 days


Q3 . Do you have any MOQ limit for products order ?
A : Low MOQ , 1pcs for sample checking is available


Q4 . How do you ship the goods and how long does it take to arrive ?
A : We usually ship by DHL , UPS , Fedex or TNT . It usually takes 3-5 days to arrive . Airline and seashipping also optional For mass products , ship freight is prefered


Q5 . Is it OK to print my logo on products ?
A : Yes , OEM and ODM are available for us


Q6 : How to ensure the quality ?
A Mill Test Certificate is supplied with shipment . If needed , a Third Party Inspection is acceptable
